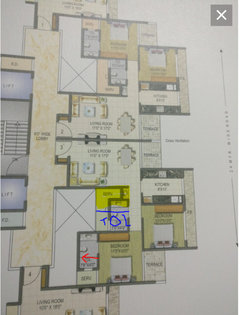

like so (sorry took liberty with your pic using paintbrush app). in second tv be installed on an island of a solid wall, remaining wall be of glass: use frosted tempered glass for doors n all.. this way you get another expanse of wall to do loads with n utilize full potential (area) of room.. also providing a wall surface on the back of the tv 'island' wall to the sitting area for say a painting, maybe? plus tehre won't be glare on the tv screen either if it's on teh wall-glass partition.. only issue being the slightly longer approach (i-e through dressing room) to bathroom area, which ain't so bad either.. in ur original plan i don't like how a door is sprouting out in the middle of a great expanse of wall... what a waste..

Pankaj, I just realized that initially you told us that the bathroom area was 12'-0" x 9'-0" and later you mentioned that it was 11'-8" x 8'-0". In the last floor plan, I forgot to change the bathroom with the new dimensions. Below is the floor plan with the correct dimensions for the bathroom. The bedroom is ok, I drew it 19'-2" x 12'-6". The new layout does not change the way things are placed. Everything still fit. The only difference is that the vanity is now 4'-4" long instead of 4'-8". and the toilet is closer to the shower by 1'-0". Can you give me the lengths of the walls K and L. They are the walls between the vanity and the shower area. I will send you the new layout once you give me the length of these 2 walls.

Tsilanko, I would always recommend professional installation where needed. But what I am doing here is suggesting that WHEN you are planning to build or renovate, to consider how your plans will affect you in 20 or 30 years time. Split levels are very hep when you are young. A kitchen 3 steps down at 30 is rarely a problem, but might be a hazard at 60, or, as Marjie1059 suggested, if you break a leg. ... All my parents' homes were terrible for old people. They were forced to move to a bungalow in extreme old sge because the location and design of their home was more suitable for an active young couple with a large family than for an elderly couple with stroke disabilities. I would not want to move again, so my present home has features built in that make ageing in place simpler. Mostly small changes, like grab rails, and lever handles on doors and faucets. A major disability suddenly suffered requires major changes if permanent. I did look at this because it came up in the discussion, but if you look at the heading, Planning for Disability, it means just that. Plan ahead so you don't have to make expensive changes later on. But thank you for your advice, yes, major changes are not in the DIY domain.

Actually the plan ( in black background), the one with measurement is the original one drawn by an architect . The other drawing (3d n the colourfull) is just a plan i drew to have an idea , where to arrange the furniture nd some modifications using a software called MAGICPLAN. That is why the staircase and bed is of awkward sizes, my bad. About the modifications, i have removed the partition between living and dining, have made a space for handwash, storage spaces for one bedroom and in kitchen which is protruding outwards marked with slanting lines in drawing, also extended 60 cm on northern side of the house to make room for balcony for bedroom, more room for bathroom nd work area. Do u think there is less space for storage, like to fit in an godreg alamarah somewhere??
