The space looks composed and tight, if you want to use the Duct area avoid the swing door. Go for sliding door. you can create a wardrobe as a part of interior furnishing and can give a sliding door at the duct side with mirror , That will also serve as the changing unit mirror.

Thanks Atelier.
Won't the sliding door occupy the side wall (bathroom wall) and not let us use that space?
Can u elaborate on wardrobe idea, will a wardrobe come inside duct.? Sorry didn't understand

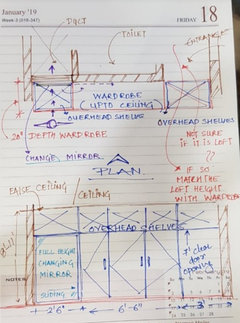

I hope This reference sketch will clear your doubt, so the idea is to use the wardrobe mirror as the door unit that will slide inside the wardrobe on the toilet wall . The directions are not cleared so i dont know about the placement of bed an entertainment unit.

Awesome..appreciate ur efforts in making a sketch.
As I understood, the wardrobe to b made on the entire bathroom wall
Sliding mirror door at duct opening which slides behind wardrobe when opened
And overhead shelves above 7 ft height above mirror door, wardrobe and room entrance

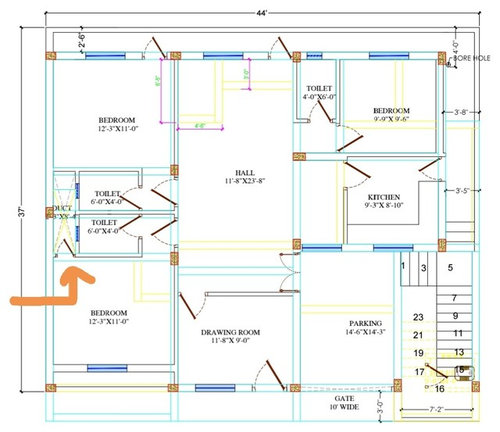

Our furniture and tv placement is as in the attached pic.
Request to suggest

Hi Farooq, The furniture placement is going to be tight in 11ft room ( 18" for wardrobe + 30 " for circulation+ 60"-72" bed) at least 9ft will go in that (single bed )so u have a least space for walking alongside the window , so u cannot plan for shelves on the window wall.

The second arrangement can be to have the window on the back side of bed , king size bed with clear walking space on both side and place the TV unit on the front toilet wall,

so u will have the overhead shelves and single door shelve, drawers below tv unit, That will give you more open and clear space.

The window indicated in my sketch is not parallel to the wall but extended inside room by a feet i think... See the image in an external view
So the place is anyways can't be used inside do thought of using either side area for shelves

Is there a door which works partly as window for ventilation .. I want to buy a suitable door at duct area..here

go with glass door with film

Thanks, and will a sliding door suitable which slides up and down?

Glass door will not serve purpose of air ventilation..
If i have only grill door, it will be problem in winter.. Any alternative.?

give a ventilation or slit winow in duct area..

We want to use the duct area as a small utility or washing area and hence prefer a door instead of a window..
If possible can u share an image of the type u mentioned plz

Hi Farooq,

As per your requirements you can use louvered doors for ventilation, as the reference images attached...

With Regards,

Stambha Architects

Hi ...I suggest u close that opening from bedroom ..make an opening from the bathroom ...the window in the bathroom can be broken to make an opening into the duct which can then be used from the bath room itself for washing purpose..both the areas then can just be separated with a plastic curtain .

doing this also give you a full blank wall in the bedroom for use

Like that

Yes got it.. U r awesome.. Thanks

you can use windows which slides in up side direction. so that you can go inside the duct area from lower panel of the window which got moved to upside by sliding.

sir rahish electishan

all tayp wark

We would suggest for rolling shutters, which are light weight, classy and easily available in the market.

Thanks, can u send a pic of that

Double shutter door can be used to save space.

I am carpenter contracter work

you can use rolling shutter also

We have already fixed a wooden frame, i think rolling shutters may not be possible now.. But it's a good idea... Thanks

you will need wardrobe space. You can incorporate your wardrobe and make wardrobe door as entrance door. it will give clean finish to ur interior view. Rolling shutter may not be pleasing to eye if not worked out properly in term of finishes. best of luck.. I did not see any window opening in ur duct for bathroom ventilation. After plumbing lines check out how much area is available to move ur machine. access may reduce after plumbing.

Thanks Vijaya Menon! Do u mean to make this type? See pic

yes

kindly make provision for moisture in air. you need to have good ventilation. machine in damp area without ventilation will have more maintenance. dry cloths means adding moisture to air. without light and change of air, you will have moss and other airborne problems.

i am carpenter contracter work

i am carpenter work

use that type slider partion door

Thank you
