Plan

6 years ago

last modified: 6 years ago

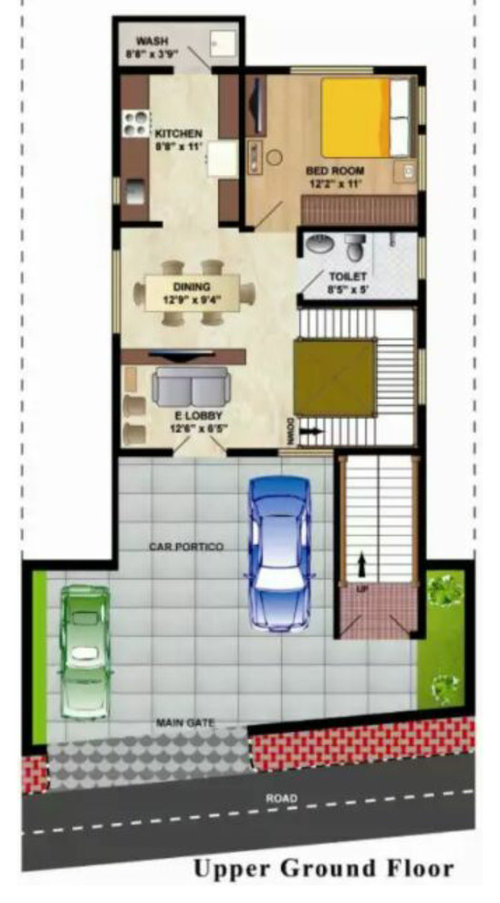

I want to go for separate puja room in the dinning area. Also need to accommodate a side by side refrigerator in dinning area itself. I can adjust with a 4 seater dinning table as well... The house is north facing.. This is a duplex House and I have attached the ground floor plan. please suggest.

Featured Answer

PRO

Cornerstone Design Studio India

6 years ago

last modified: 6 years ago

Hello Sneha,

You have a total of 22 ft long slab for kitchen.That may be too big. We may cut that down and have a pooja room and refrigerator space.

BTW, Are you sure about a 6 ft wide executive lobby? Cramped ?

Thanks,

Nitin

Cornerstone Designs.

Sort by:Oldest

Comments (12)

Sneha Thakur
Original Author
6 years ago

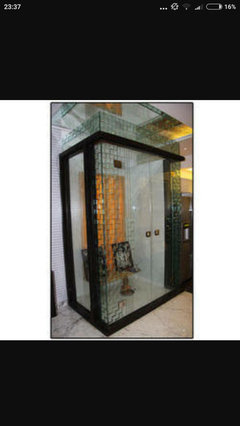

well! the issue is that this was designed by a designer and is all newly constructed... I will need the long slab in the kitchen as I will be using it for keeping an owen, a mixer grinder. the opposite side of the slab cannot be used to keep a refrigerator as there is no depth. as per vastu need the puja room in North East corner as much as possible. I want a small puja room. I'm attaching a pic of the same that I'm looking for.
Related Discussions
suggest nice plan for 19*30 floor plan
Q
Comments (0)
require good plan for 19*30 north facing corner plot. and main door should be facing either north or east with 2 bedrooms.
...See More
my house plan.can sum 1 tell any better plan r any flaws present in it
Q
Comments (10)
Hi Tanzil. Greetings, The plan is looking very generous. Nothing to criticize but a little thinking could make a real good plan for egl. 1) The hall could accomodate the dining area as well. 2) A single stair is sufficient enough to fulfill the requirements. depending upon where it is placed. 3) A lounge on the first floor would add the charm to the upper floor and a large balcony may be if possible. 4) Some vegetation in the interior could make it lively. 5) I f a small courtyard if not a hindrance into the central area can make it more inclined towards nature since it would be good for light and ventilation. There are a lot of other small things possible depending upon the requirements and the structural probability.There doesnt seem to be the column and beam overlay over the plan which would be also helpful in designing. Thanks and regards Riddhish
...See More
I need 20×40 house plan
Q
Comments (3)
Hey , Amisha this side I am a interior designer. Please share your contact details so we can further discuss for your home planning. Thank you
...See More
i need home plan immediately
Q
Comments (0)
Hi i need my home front design plan
...See More
Sneha Thakur
Original Author
6 years ago
also the slab is only 9ft. 2ft is the sink and the opposite is the storage.
PRO
Cornerstone Design Studio India
6 years ago
Thanks for clarifying Sneha.

Its a north facing property so the TV unit is placed in north , are you willing to compromise on that if you need a pooja room in NE. Please include the directions in the plan to avoid confusion.

A four seater dining may not be of much help as the width of the table remains approximately same its only the length that is reduced. We also need to maintain safe distance from the TV unit plus we have a french window on the west side.

It may require some structural changes, in discussion with your designer, to the plan to accommodate a pooja room without compromising on the looks. Are you willing for that.

Thanks,

Nitin

Cornerstone Designs.
Sneha Thakur
Original Author
6 years ago
yes... I'm fine to compromise on the TV unit. The wall that's dividing the dinning area and the sitout is actually a wooden partition. so all 3 sides of the dinning are are free. The 4th side there is a washroom. On one side there is a window..
Sneha Thakur
Original Author
6 years ago
give me some time and I will provide u with some more pics ....
PRO
Hyphen Designs
6 years ago
last modified: 6 years ago
My Suggestions are -

Kitchen-

Placing all activities (fridge,cooking range & sink) may be difficult to have in this given place. (Min. required length is 14').

1. Instead you can shift your kitchen sink to the opposite side of the corner. & Since you have option of having big sink (double bowl / single bowl with drain) in the utility, go for single bowl carysil quartz sink (as shown in pick) inside the kitchen.

2. In place of existing sink, have your fridge.

Pooja - Place pooja unit in the corner abutting the kitchen&external , facing dining.

Hope this solves the issue...
Sneha Thakur
Original Author
6 years ago

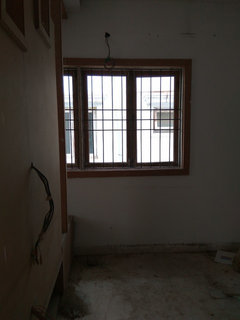

as told earlier sharing pics of the dinning area
PRO
Cornerstone Design Studio India
6 years ago
Hi,

Why is this is not matching the plan that was shared earlier. The window is shared between Dining and E Lobby as per the earlier plan window was completely inside the dining area only..

So have you pushed the separation wall more towards dining area to make the lobby bigger. What is the current dimension on dining area.
Sneha Thakur
Original Author
6 years ago
no... we haven't moved the partition. the dimensions are exactly the same... just that positioning of window is diff... it's kinda shared between the lobby and the dinning space.
PRO
Cornerstone Design Studio India
6 years ago
last modified: 6 years ago
Ok Maam . Then making a closed temple in the NE corner of dining would be quite challenging . It will close the window next to TV Unit.

We have some options to

1- have a small temple like ledges on the TV Unit.

Asian Living Room · More Info

Markham home temple · More Info

2 have a semi closed temple on the SE wall i .e. kitchen side.
3BHK RESIDENTIAL APARTMENT AT CLUB BELLEVUE- BORIVALI WEST · More Info

villa in bangalore · More Info

3- If you are willing to compromise on the TV placement something similar can be done on the TV unit wall.

Pray Room · More Info

However it needs to be small one not of the sizes you have shared- they are too big for the area.

Thanks

Nitin

Cornerstone Designs

Bangalore
rianashish
6 years ago
1. To optimize the flow of the room, you should move the entrance to the right.
2. The triangle rule of the kitchen should be followed, else you will find it difficult to manage inside.
3. Make a bookshelf to hide the fridge projection.
4. Use this pooja design here for the pooja ledge option.
  Asian Living Room · More Info
5. Make the two side partition; one sided for TV and some showpiece stand and the other side for shelves. Best to make this sturdy and upto 6-7ft height and not floor to ceiling so that it can be moved in future.
6. Use compact chairs/seaters in exe lobby.
